Tools for UTM, MGRS, and USNG Coordinates

Grid Style Tools
Slot Style Tools
Corner Ruler or Roamer Style Tools
Military Style Tools
Mini Corner Style Tools
Ruler Style Tools
Looking for a specific map scale... try our product listings by scale
Learn more about UTM, MGRS, and USNG Coordinates
Not sure if UTM Coordinates are the right choice... Learn more about Choosing a Coordinate System

Grid Style Tools

Grid style tools are quick and easy to use and understand. This makes them a great tools for beginners. The tools fit within the grid lines, and visually divides it into a 10 by 10 grid. These smaller grids are numbered 0 to 9 from east to west and from north to south. A point that falls inside a smaller grid gets the easting and northing values of the smaller grid added on the easting and northing of the map grid. Partial grids at the edges of the map are no problem, just place the tool as if the entire grid was present.

The two disadvantages of this style tool are the inability to place a mark on the map without first moving the tool. And the difficulty of determining a location with more precision that a tenth of the map grid spacing.

Grid Style Product List

1:24,000 Scale Pocket Size UTM Grid
Fast and easy UTM plotting
Scales: 1:31,680 x 1km
UTMGrid24 image
1:25,000 Scale Pocket Size UTM Grid
Fast and easy UTM plotting
Scales: 1:25,000 x 1km
UTMGrid25 image
1:50,000 Scale Pocket Size UTM Grid
Fast and easy UTM plotting
Scales: 1:50,000 x 2km
UTMGrid50 image
1:100,000 Scale UTM Grid
For 1° X 2° USGS & BLM Maps
Scales: 1:100,000 x 10km
UTMGrid100 image
1:31,680 Scale Pocket Size UTM Grid
Philmont Scout Ranch, McKenzie Boundary Waters maps and Halfmile's PCT maps
UTMGrid31680 image

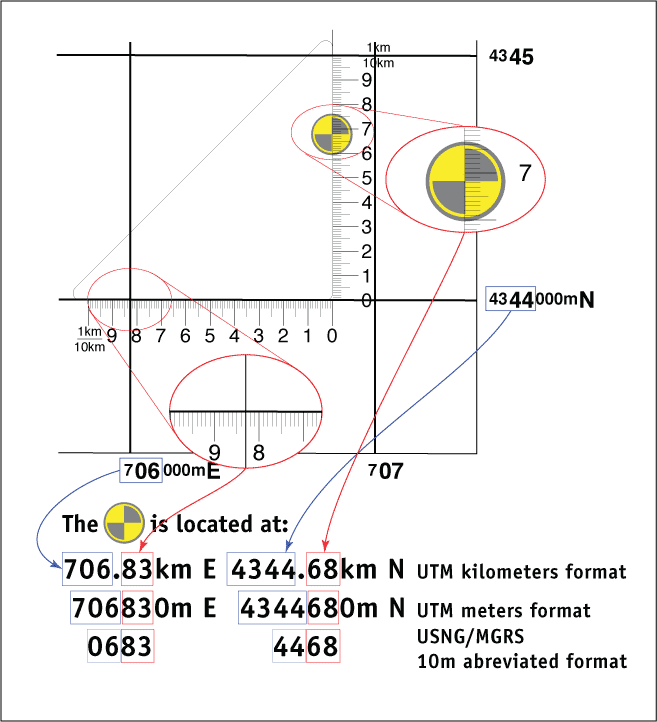

UTM Grid usage diagram

Slot Style Tools

The Slot Style is my personal favorite tool style. All the accuracy you need. Access to mark on the map. Easy to keep parallel to the grid lines. And quick to verify that it fits in the grid. What's not to like.

Conceptually they are harder to understand and I often get the question, "Why is the east-west ruler numbered backwards?" The tool is used by sliding it across the east-west direction of the grid and reading the easting value at the west edge of the grid. In this aspect, it is similar to a corner roamer. The northing is read through the vertical slot, with values increasing as you move to the north.

Slot Style Product List

1:24,000 Pocket Sized Slot Tool
Fast and easy UTM plotting
Scales: 1:24,000 x 1km
UTMSlot24 image
1:12,000 & 1:24,000 Slot Tool
Fast and easy UTM plotting
Scales: 1:12,000 x 1km , 1:24,000 x 1km
UTMSlot12 image
1:24,000 Credit Card Sized UTM Slot Tool
also includes distance in miles and feet
Scales: 1:24,000 x 1km
UTM-SC24 image
1:25,000 Credit Card Sized UTM Slot Tool
also includes distance in miles and feet
Scales: 1:25,000 x 1km
UTM-SC25 image
Pocket Sized UTM Slot Tool - Degrees
Compass rose marked in degrees.
Scales: 1:24,000 x 1km , 1:25,000 x 1km
PocketSlots image
Pocket Sized UTM Slot Tool - 90 Degree Quadrants
Compass rose marked in 90 degree quadrants.
Scales: 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 1km
PocketSlotsQuads image
Pocket Sized UTM Slot Tool - Mils
Compass rose marked in mils.
Scales: 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 1km
PocketSlotsMils image
Military Style UTM/MGRS Coordinate Scale
Coordinate Scale and Protractor - GTA 5-2-12
Scales: 1:25,000 x 1km , 1:50,000 x 1km , 1:100,000 x 1km , 1:250,000 x 10km†
GTA image
REDs Coordinate Scale and Protractor
Risk Estimate Distances for Common Mortar Rounds
Scales: 1:10,000 x 500m , 1:25,000 x 1km , 1:50,000 x 2km , 1:100,000 x 5km† , 1:250,000 x 10km† , 1:500,000 x 20km†
REDs-1 image
Improved Military Style UTM/MGRS Coordinate Scale
Compass Rose in both Degrees and Mils
Scales: 1:10,000 x 500m , 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 2km , 1:100,000 x 5km† , 1:250,000 x 10km† , 1:500,000 x 20km†
SuperGTA image
Round Military Coordinate Scale and Protractor
Large Print, Compass Rose in Degrees
Scales: 1:10,000 x 500 m , 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 2km , 1:100,000 x 5km† , 1:250,000 x 10km† , 1:500,000 x 20km†
RoundGTA image
Round Military Coordinate Scale and Protractor
Large Print, Compass Rose in 90 Degree Quadrants
Scales: 1:10,000 x 500 m , 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 2km , 1:100,000 x 5km† , 1:250,000 x 10km† , 1:500,000 x 20km†
RoundGTAQuads image
UTM Slot Tool (14 Scales)
14 Scales in a compact tool
Scales: 1:10,000 x 1km† , 1:15,000 x 1km , 1:20,000 x 1km , 1:24,000 x 1km , 1:25,000 x 1km , 1:30,000 x 1km , 1:62,500 x 5km , 1:100,000 x 10km , 1:125,000 x 10km , 1:150,000 x 10km† , 1:200,000 x 10km† , 1:250,000 x 10km† , 1:300,000 x 10km† , 1:1,000,000 x 100km†
UTMSlots image
Tom Harrison Map Series UTM Slots
Scales: 1:10,000 x 1km† , 1:24,000 x 1km , 1:31,680 x 1km , 1:42,240 x 2km , 1:47,520 x 2km , 1:48,000 x 2km , 1:63,360 x 5km , 1:100,000 x 10km , 1:1,000,000 x 100km†
UTM-TH image
Green Trails UTM Slots
Pocket sized
Scales: 1:69,500 x 2km
UTM-GT image
British Columbia UTM Slots
Scales: 1:20,000 x 1km , 1:50,000 x 2km
UTM-BC image
Natl Geo Kiosk and !TOPO Maps UTM Slots
Scales: 1:24,000 x 1km , 1:30,750 x 1km
UTM-NG image
USFS Maps UTM Slots
Scales: 1:10,000 x 1km† , 1:24,000 x 1km , 1:25,000 x 1km , 1:62,500 x 5km , 1:63,360 x 5km , 1:100,000 x 10km , 1:126,720 x 10km , 1:250,000 x 10km†
UTM-FS image
UTM Slots for 1:31,680 1 inch = 1/2 mile
Philmont Scout Ranch, McKenzie Boundary Waters maps and Halfmile's PCT maps
Scales: 1:24,000 x 1km , 1:31,680 x 1km
UTM-MK image
Natl. Geo. Trails Illustrated Maps UTM Slots for 1:40,680
Scales: 1:24,000 x 1km , 1:40,680 x 1km
UTM-TI image
Pocket Sized UTM Slots for My Topo Maps
Scales: 1:24,000 x 1km , 1:25,000 x 1km , 1:30,000 x 1km , 1:35,000 x 1km
MyTopo-1 image
Pocket Sized UTM Slots for My Topo Air Photos
Scales: 1:5,000 x 250m , 1:10,000 x 500m , 1:15,000 x 500m
MyTopo-2 image
† This scale can be used by multiplying or dividing one of the scales printed on the tool by 10. Slot tool usage diagram

Corner Ruler or Roamer Style Style Tools

A traditional roamer tool that is used by sliding the tool within the grid and reading the easting and northing values at the western and southern grid lines.

Here is a short piece on why I prefer to use a Slot Style tool

Corner Ruler or Roamer Style Product List

Adventure Racing Corner Rulers
One Tool, 5 Common Scales
Scales: 1:10,000 x 1km , 1:15,000 x 1km , 1:24,000 x 1km , 1:25,000 x 1km , 1:30,000 x 1km , 1:100,000 x 10km† , 1:150,000 x 1km† , 1:250,000 x 10km† , 1:300,000 x 10km† , 1:1,000,000 x 10km†
AdvCorner image
Pocket Sized UTM Corner Rulers
Scales: 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 1km
PocketCorners image
UTM Corner Rulers Overlay - 7 Scales
Scales: 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 5km , 1:62,500 x 5km , 1:63,360 x 5km , 1:100,000 x 10km , 1:150,000 x 10km , 1:250,000 x 10km
UTMCorners image
Aerial Photo UTM Corner Rulers
Lots of Scales, More Precision
Scales: 1:5,000 x 500m , 1:8,000 x 500m , 1:12,000 x 500m , 1:15,000 x 500m
AirCorner image
† This scale can be used by multiplying or dividing one of the scales printed on the tool by 10. Corner tool usage diagram

Military Style Tools

I get a lot of comments from both active duty and retired military folks about how superior our Coordinate Scale and Protractor is to the standard issue version. Here is why it's better...

  • Our cutouts are in the right location.
  • Our text is crisp and easy to read.
  • Our corners are rounded, so the tool doesn't poke holes in you or your pockets.
  • Our tools are printed on 0.030 in. thick stock to make them tough, with just a bit of flexibility.
  • Our tools have a clear ultraviolet cured protective layer to keep the markings from wearing off.
  • Our tool are made in the United States.
Our basic Coordinate Scale and Protractor is equivalent to a standard GTA 5-2-12. It's the tool required for most military navigation schools.

Our Improved Coordinate Scale and Protractor is a popular alternative to the basic tool. Here is what we've done to make it better.
  • We have added bands of white ink under the protractor markings. This has two benefits. First off, the tool doesn't just "disappear" when you set it down. Second, it's easier to read the angle from the protractor.
  • We have moved from a triangular cutout to a narrow slot. This gives us enough extra "real estate" to extend the 1:100,000 scale to span 5km. And to add a 1:24,000 scale making the tool usable on the most common map scale in the Continental United States
  • Finally we have drilled a hole in the center of the protractor, so you don't have to. This allows a bit of thread or elastic to be used to extend the bearing line away from the edge of the protractor.

We are able to supply our Military Style Tools in quantities ranging from 1 to tens of thousands. We accept US Government purchase cards for individuals or units wishing to make small purchases directly. We will also be happy to work with your procurement folks.

Military Style Product List

Round Military Coordinate Scale and Protractor
Large Print, Compass Rose in Degrees
Scales: 1:10,000 x 500 m , 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 2km , 1:100,000 x 5km† , 1:250,000 x 10km† , 1:500,000 x 20km†
RoundGTA image
Improved Military Style UTM/MGRS Coordinate Scale
Compass Rose in both Degrees and Mils
Scales: 1:10,000 x 500m , 1:24,000 x 1km , 1:25,000 x 1km , 1:50,000 x 2km , 1:100,000 x 5km† , 1:250,000 x 10km† , 1:500,000 x 20km†
SuperGTA image
REDs Coordinate Scale and Protractor
Risk Estimate Distances for Common Mortar Rounds
Scales: 1:10,000 x 500m , 1:25,000 x 1km , 1:50,000 x 2km , 1:100,000 x 5km† , 1:250,000 x 10km† , 1:500,000 x 20km†
REDs-1 image
Military Style UTM/MGRS Coordinate Scale
Coordinate Scale and Protractor - GTA 5-2-12
Scales: 1:25,000 x 1km , 1:50,000 x 1km , 1:100,000 x 1km , 1:250,000 x 10km†
GTA image
† This scale can be used by multiplying or dividing one of the scales printed on the tool by 10. GTA tool usage diagram

Mini Corner Style Tools

If you are seeking the smallest and lightest tools, the mini corners are for you. It's just a tiny triangle that you slide across the grid. There is a lanyard hole, so that it dosen't get lost. On our most recent re-print we added a patch of white ink to our 24k, 25k and 50k tools to keep them from disappearing when you set them down.

Mini Corner Style Product List

Mini Corner Ruler for 1:12,000
Scales: 1:12,000 x 1km
Mini12 image
Mini Corner Ruler for 1:24,000
Scales: 1:24,000 x 1km
Mini24 image
Mini Corner Ruler for 1:25,000
Scales: 1:25,000 x 1km
Mini25 image
Mini Corner Ruler for 1:30,000
Scales: 1:30,000 x 1km
Mini30 image
Mini Corner Ruler for 1:35,000
Scales: 1:35,000 x 1km
Mini35 image
Mini Corner Ruler for 1:47,520
Scales: 1:47,520 x 2km
Mini47 image
Mini Corner Ruler for 1:48,000
Scales: 1:48,000 x 2km
Mini48 image
Mini Corner Ruler for 1:50,000
Scales: 1:50,000 x 1km
Mini50 image
Mini Corner Ruler for 1:62,500
Scales: 1:62,500 x 2.5km
Mini62 image
Mini Corner Ruler for 1:63,360
Scales: 1:63,360 x 2.5km
Mini63 image
Mini corner usage diagram

Ruler Style Tools

Our Map Rulers are primarily designed for plotting latitude/longitude coordinates. But the all have an edge marked in meters or kilometers that can be used to measure UTM, MGRS, and USNG coordinates as well. Better yet we have them for lots of different map scales.

Ruler Style Product List

Adventure Set of 4 Map Rulers
1:24,000 1:62,500 1:100,000 1:126,720
AdventureSet image
Map Rulers - USGS Set of 10 Map Rulers
Scales for most maps published by USGS
USGSSet image
Map Rulers - Explorer Set of MapRulers
ExplorerSet image
Map Rulers - Nautical Set
NauticalSet image
1:5,000 Scale Nautical Map Ruler
Scales: 1:5,000 x .5 minutes
Ruler5N image
1:10,000 Scale Nautical Map Ruler
Scales: 1:10,000 x .5 minutes
Ruler10N image
1:15,000 Scale Nautical Map Ruler
Scales: 1:15,000 x 1 minute
Ruler15N image
1:20,000 Scale Nautical Map Ruler
Scales: 1:20,000 x 1 minute
Ruler20N image
1:24,000 Scale Map Ruler
Scales: 1:24,000 x 2.5 minutes
Ruler24 image
1:25,000 Scale Map Ruler
Scales: 1:25,000 x 2.5 minutes
Ruler25 image
1:30,000 Scale Nautical Map Ruler
Scales: 1:30,000 x 2 minutes
Ruler30N image
1:30,750 Scale Map Ruler
Scales: 1:30,750 x 2.5 minutes
Ruler30750 image
1:40,000 Scale Nautical Map Ruler
Scales: 1:40,000 x 2 minutes
Ruler40N image
1:40,680 Scale Map Ruler
Scales: 1:40,680 x 4 minutes
Ruler40680 image
1:50,000 Scale Map Ruler
Scales: 1:50,000 x 5 minutes
Ruler50 image
1:50,000 Scale Stainless Steel Ruler
0-30 kilometers, 0-18 miles, and 15 minutes of Latitude
Scales: 1:50,000 x 30km , 1:50,000 x 18 miles , 1:50,000 x 15 minutes
SSRuler50 image
1:62,500 Scale Map Ruler
Scales: 1:62,500 x 5 minutes
Ruler62 image
1:63,360 Scale Map Ruler
Scales: 1:63,360 x 5 minutes
Ruler63 image
1:69,500 Scale Map Ruler
Scales: 1:69,500 x 5 minutes
Ruler69 image
1:75,000 Scale Map Ruler
Scales: 1:75,000 x 5 minutes
Ruler75 image
1:77,000 Scale Nautical Map Ruler
Scales: 1:77,000 x 5 minutes
Ruler77N image
1:80,000 Scale Nautical Map Ruler
Scales: 1:80,000 x 5 minutes
Ruler80N image
1:80,000 Scale x 7.5 min Nautical Map Ruler
Scales: 1:80,000 x 7.5 minutes
Ruler80NL image
1:100,000 Scale Map Ruler
Scales: 1:100,000 x 10 minutes
Ruler100 image
1:100,000 Scale Nautical Map Ruler
Scales: 1:100,000 x 10 minutes
Ruler100N image
1:125,000 Scale Map Ruler
Scales: 1:125,000 x 7.5 minutes
Ruler125 image
1:126,720 Scale Map Ruler
Scales: 1:126,720 x 7.5 minutes
Ruler126 image
1:150,000 Scale Map Ruler
Scales: 1:150,000 x 15 minutes
Ruler150 image
1:160,000 Scale Map Ruler
Scales: 1:160,000 x 15 minutes
Ruler160 image
1:200,000 Scale Map Ruler
Scales: 1:200,000 x 15 minutes
Ruler200 image
1:250,000 Scale Map Ruler
Scales: 1:250,000 x 15 minutes
Ruler250 image
1:280,000 Scale Map Ruler
Scales: 1:280,000 x 20 minutes
Ruler280 image
1:300,000 Scale Map Ruler
Scales: 1:300,000 x 30 minutes
Ruler300 image
1:320,000 Scale Map Ruler
Scales: 1:320,000 x 30 minutes
Ruler320 image
1:400,000 Scale Map Ruler
Scales: 1:400,000 x 30 minutes
Ruler400 image
1:500,000 Scale Map Ruler
Scales: 1:500,000 x 30 minutes
Ruler500 image
