1:50,000 Scale Pocket Size UTM Grid
Fast and easy UTM plotting

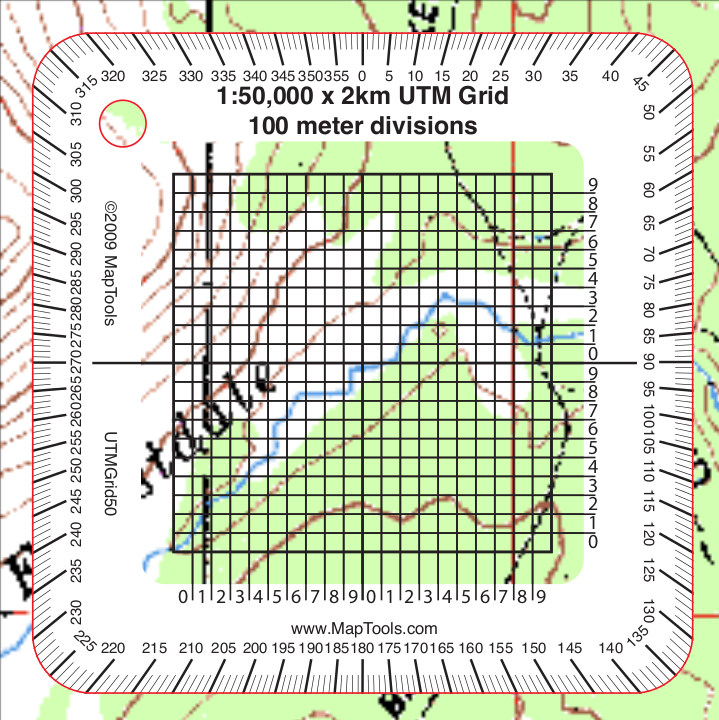

Note: Product edges and interior cutouts are shown with a thin red line. Neither the red lines, colored background, nor map image are printed on the actual tool. (more info)

Product Description

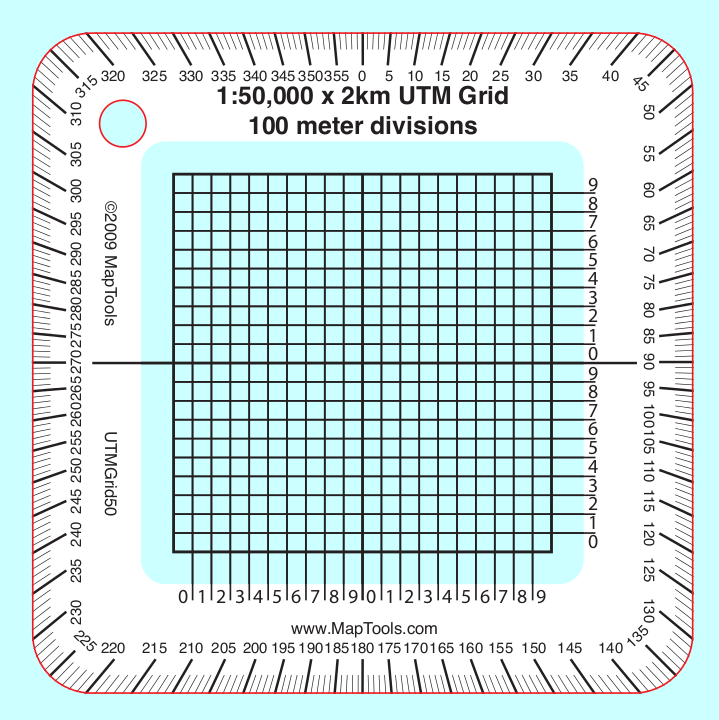

An easy to use grid tool that divides four 1 kilometer grid squares into 100 meter squares. Align the tool on the map grid and read off the easting and northing values. The tool also has a compass rose protractor along the outside edge. This makes plotting or measuring a bearing a snap. The small size of the tool allows you to keep it handy in your pocket.

A band of white ink around the edge makes reading the compass rose and grid numbers easier and also keeps the tool from "disappearing" when you place it on the map. There is a lanyard hole in the upper left corner.

Printed on 30 mil plastic stock the tools are about the thickness of a credit card. The ink is coated to protect it from abrasion.

Add to Shopping Cart

Item description Quantity Price Quantity
1:50,000 Scale Pocket Size UTM Grid
Fast and easy UTM plotting
Part Id: UTMGrid50, Made in United States, UPC: 824249140507
1 - 9
10 - 24
25 - 99
100+
$3.95
$3.36
$2.77
$2.37

Specifications

Scales:
  • 1:50,000 x 2km
Height: 2.75 in. (70mm)
Width: 2.75 in. (70mm)
Thickness: 0.03 in. (1mm)
Made in United States.

How to use products like this...

Using a grid style tool to plot/measure a UTM position with 100m precision

Map with UTM position

Here is a tutorial on using this type of tool.

Here is information on using the Universal Transverse Mercator coordinates (UTM).

Here is information on using the United States National Grid (USNG).

Here is information on using the Military Grid Reference System (MGRS).
