1:24,000 Pocket Sized Slot Tool
Fast and easy UTM plotting

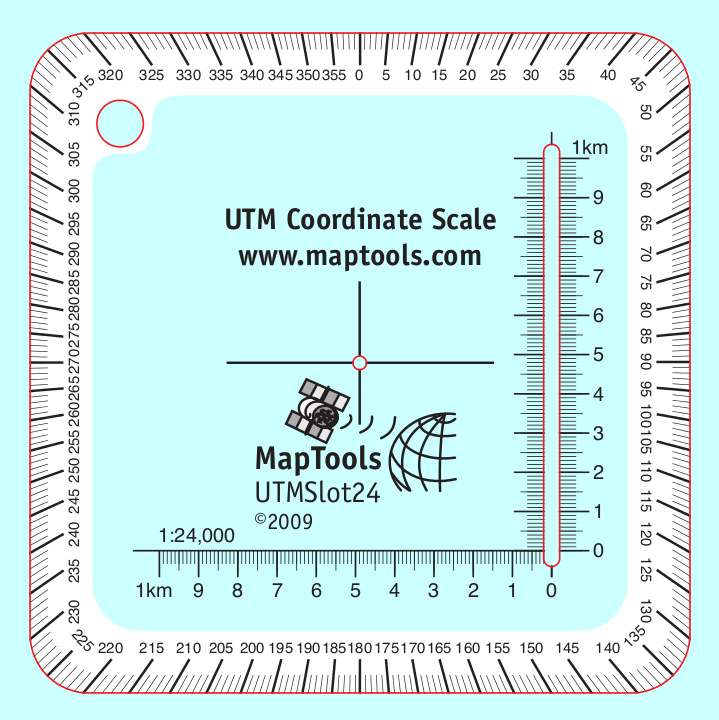

Note: Product edges and interior cutouts are shown with a thin red line. Neither the red lines, colored background, nor map image are printed on the actual tool. (more info)

Product Description

This tool enables you to plot UTM coordinates to a 10 meter accuracy within a 1 kilometer grid square. The tool also has a compass rose along its outside edge. This makes plotting or measuring a bearing a snap. The small size of this tool will allow you to keep it handy in your pocket. A band of white ink around the edge of the tool makes reading the compass rose easier and also keeps the tool from "disappearing" when you place it on the map. There is also a lanyard hole in the upper left corner.

Printed on plastic stock, the tool is about the thickness of a credit card. The ink is coated to protect it from abrasion.

Add to Shopping Cart

Item description Quantity Price Quantity
1:24,000 Pocket Sized Slot Tool
Fast and easy UTM plotting
Part Id: UTMSlot24, Made in United States, UPC: 824249150483
1 - 9
10 - 24
25 - 99
100+
$3.95
$3.36
$2.77
$2.37

Specifications

Scales:
  • 1:24,000 x 1km
Height: 2.75 in. (70mm)
Width: 2.75 in. (70mm)
Thickness: 0.03 in. (1mm)
Made in United States.

How to use products like this...

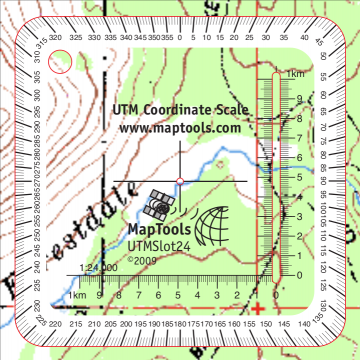

Using a slot style tool to plot/measure a 10m MGRS position

Slot style tool with UTM position

Here is a tutorial on using this type of tool.

Here is information on using the Universal Transverse Mercator coordinates (UTM).

Here is information on using the United States National Grid (USNG).

Here is information on using the Military Grid Reference System (MGRS).
