USFS Maps UTM Slots

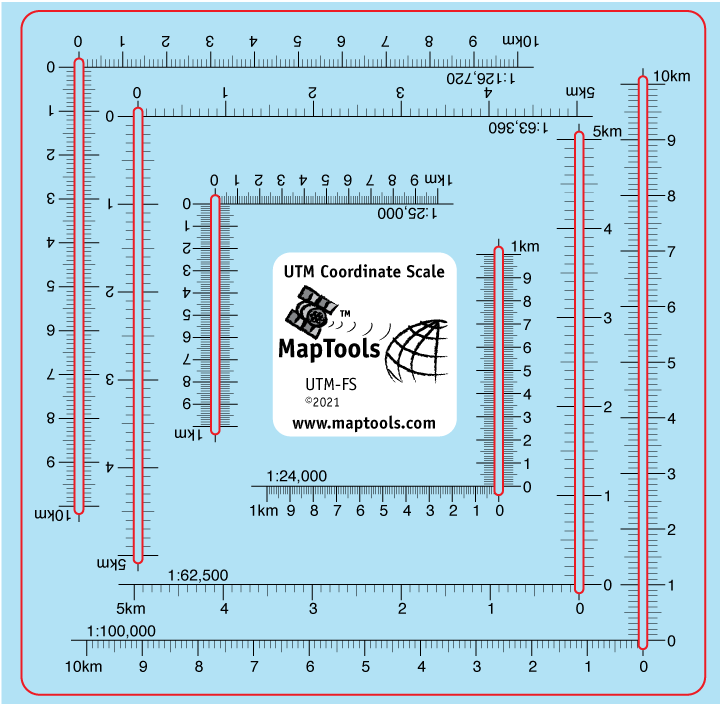

Note: Product edges and interior cutouts are shown with a thin red line. Neither the red lines, colored background, nor map image are printed on the actual tool. (more info)

Product Description

Recently revised Forest Service Maps now frequently include UTM coordinate references. Hooray!

Be sure to check your map, as there are still lots of FS maps that only have lat/lon coordinate info on them.

Printed on sturdy plastic with a protective coating.

Add to Shopping Cart

Item description Quantity Price Quantity
USFS Maps UTM Slots
Part Id: UTM-FS, Made in United States, UPC: 824249150186
Quantities of 10 or more, shipped in bulk packaging. more info
1 - 9
10 - 24
25 - 99
100+
$7.95
$6.76
$5.57
$4.77

Specifications

Scales:
  • 1:10,000 x 1km†
  • 1:24,000 x 1km
  • 1:25,000 x 1km
  • 1:62,500 x 5km
  • 1:63,360 x 5km
  • 1:100,000 x 10km
  • 1:126,720 x 10km
  • 1:250,000 x 10km†
† This scale can be used by multiplying or dividing one of the scales printed on the tool by 10.

For example, a 1:100,000 x 10km tool can be used as a 1:10,000 x 1km tool by dividing the scale and grid distance by 10, and as a 1:1,000,000 x 100km tool by multiplying the scale and grid distance by 10.

Dimensions:
Height: 8.500 in. (216mm)
Width: 6.000 in. (152mm)
Thickness: 0.030 in. (1mm)
Made in United States.
