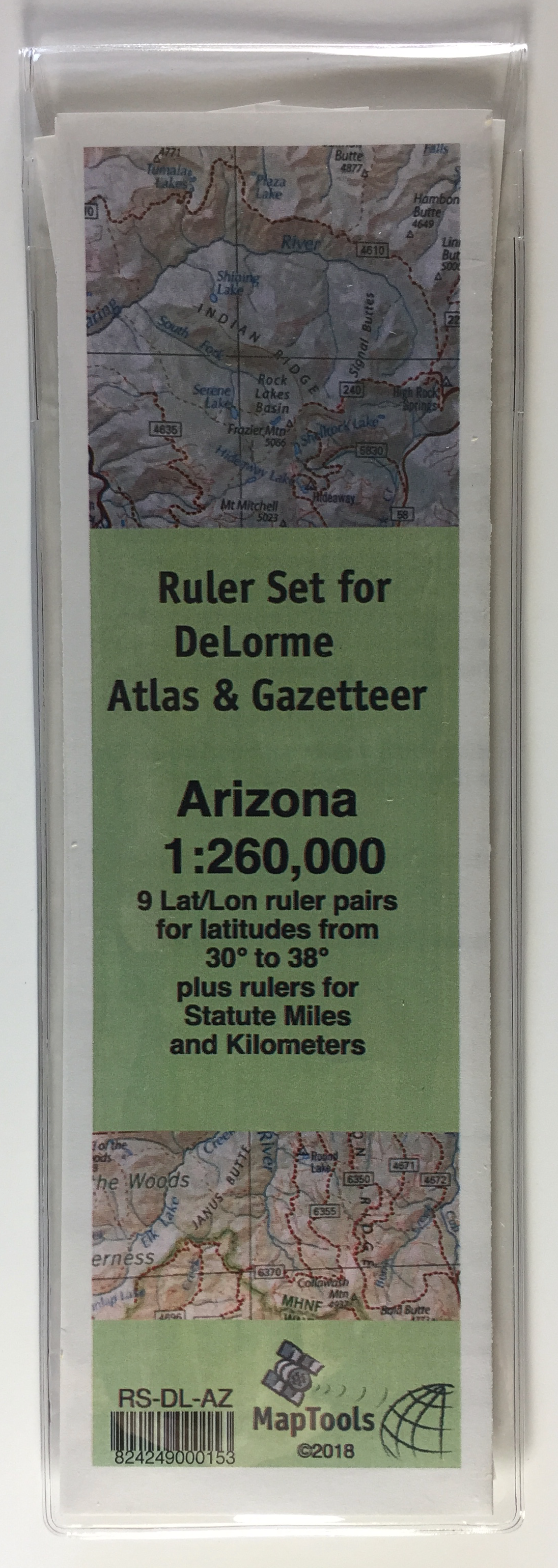

Ruler Set for DeLorme® Atlas & Gazetteer-Arizona 1:260,000
- Ruler Set for DeLorme® Atlas & Gazetteer-Arizona (2018)
- Map Scale: 1:260,000

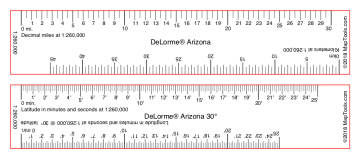

- 9 ruler pairs for measuring latitude longitude (25' 0")

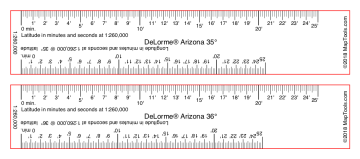

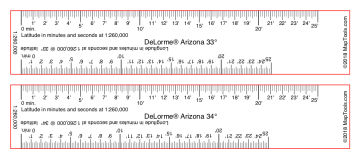

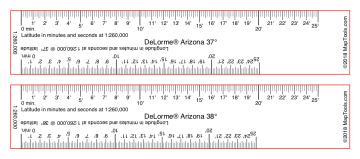

- Longitude rulers scaled for latitude in 1 degree increments
- Rulers for measuring miles and kilometers (30 miles, 45 km)
This ruler set was designed to be used with the DeLorme® Atlas & Gazetteer for Arizona. It contains 9 ruler pairs for measuring latitude longitude coordinates at latitudes ranging from 30° to 38° on a map with a scale of 1:260,000. It also contains rulers for measuring statute miles and kilometers.
The pages of the atlas have a printed lat/lon grid shown with thin black lines. The lines are marked with their values just outside of the edges of the map, in a degrees, minutes and seconds format and in decimal degrees.
Longitude rulers used north of their design parallel of latitude, will be too long to fit the grid. The ruler should be "close enough" up to about 1° north of the design latitude. As you move north, you may find the next ruler in the set is a closer fit. You can also use the ruler on a slight diagonal between the grid lines to compensate for the extra length.
These rulers are somewhat different than our regular plastic rulers...
- They are printed on a 10 mil polyester stock. Waterproof, weatherproof, and tear proof, but a bit thinner than our stock rulers.
- They are 1.5 inches wide and 8.5 inches long.
We make these rulers using our custom ruler printing process. If you have need of a map ruler that not in one of our sets, check out the custom map ruler design page.
Add to Shopping Cart
- 1:260,000 x 25 minutes
- 1:260,000 x 30 miles
- 1:260,000 x 45 kilometers
Height: 8.500 in. (216mm)
Width: 1.500 in. (38mm)
Thickness: 0.007 in. (0mm)
Weight: 0.050 oz. (1g)
Height: 8.500 in. (216mm)
Width: 3.000 in. (76mm)
Thickness: 0.200 in. (5mm)
Made in United States.
