UTM Coordinate Tools

How to Use UTM Coordinates

========= utmtool150

"Pocket Sized" 1:24,000 scale
UTM Grid Overlay Tool

The "pocket sized" tool contains.

  • 100 m. UTM Grid Reader
  • Protractor and straightedge for plotting azimuths

I hand these out when I'm teaching students to work with UTM coordinates.

pdf icon
Download this UTM Tool in PDF format... "Pocket Sized" 1:24,000 UTM Gird Overlay

Purchase a "Pocket Sized" 1:24,000 UTM Grid Overlay Tool.

=========

UTM Grids

24k grid

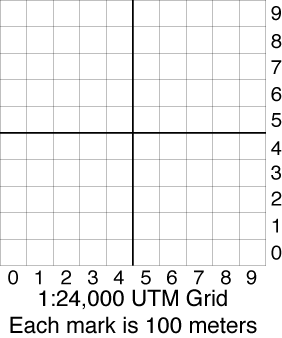

The UTM grid overlays are useful to interpolate one decimal place beyond the grid interval on the map. For example on a 1:24,000 scale USGS topo map the UTM grid lines are 1000m apart. The overlay will show 100m increments.

Grids like this work best for determining the coordinates of a mark on the map. To plot a point onto your map use a UTM Box tool that is open in the center.

pdf icon
Download UTM Grids in PDF format...

=========

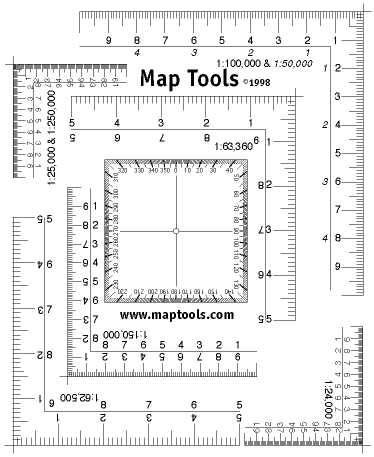

UTM Corner Rulers

utm corners

pdf icon
Download UTM Corner Rulers in PDF format...UTM Corner Ruler Overlay

Purchase a UTM Corner Rulers Overlay.
